Specifiche

DETAILS

Piattaforma

Scalpel HT

Nome Modello

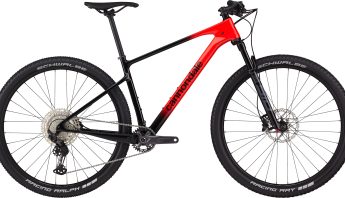

Scalpel HT Carbon 4

Codice Modello

C25401U

KIT TELAIO

Telaio

Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger

Forcella

RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset

Serie sterzo

Integrated, 1-1/8 to 1.5″, sealed angular contact bearings

TRASMISSIONE

Cambio

Shimano XT

Leve cambio

Shimano Deore M6100, 12-speed

Catena

Shimano Deore, 12-speed

Guarnitura

Shimano M5121, 30T, 55mm chainline

Pacco pignoni

Shimano Deore M6100, 10-51, 12-speed

Movimento centrale

Cannondale Alloy PressFit 30 – 24mm

FRENI

Freni

Shimano MT501 hydraulic disc, 160/160mm RT54 rotors

Leve Freno

Shimano MT500 hydraulic disc

RUOTE

Cerchi

WTB STX i23, 32h, tubeless ready

Raggi

DT Swiss Champion 2.0

Pneumatici

(F) Schwalbe Racing Ray EVO, 29 x 2.25″, Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29 x 2.25″, SnakeSkin, Addix compound, tubeless ready

Dimensioni pneumatico

2.25

Dimensione Ruote

29

Mozzi

(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle

Front Tire

Schwalbe Racing Ray EVO, 29 x 2.25″, Twinskin, tubeless ready

Rear Tire

Schwalbe Racing Ray EVO, 29 x 2.25″, Twinskin, tubeless ready

COMPONENTI

Manubrio

Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm

Attacco Manubrio

Cannondale 2, 6061 Alloy, 31.8, 7°

Impugnatura

Cannondale TrailShroom

Sella

Cannondale Scoop Shallow Sport, steel rails

Reggisella

C3 Alloy, 27.2x400mm

IN BASE ALLA DISPONIBILITÀ DEI COMPONENTI, LE SPECIFICHE SONO SOGGETTE A CAMBIAMENTO SENZA PREAVVISO.
