DETAILS

Piattaforma

SuperSix EVO

Nome Modello

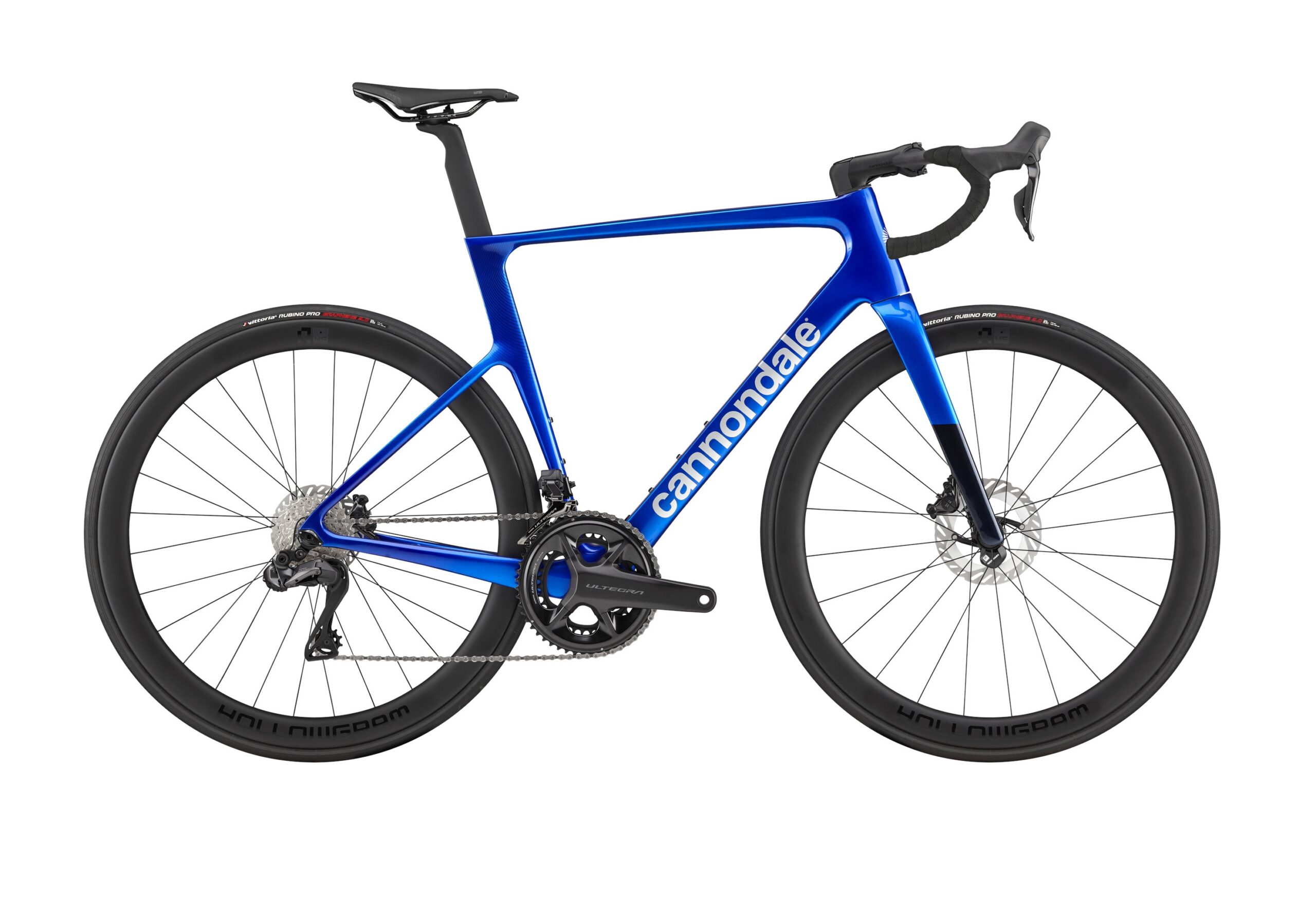

SuperSix EVO 2 C11402U

Codice Modello

C11402U

KIT TELAIO

Telaio

SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12×142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible

Forcella

SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/4″ Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)

Serie sterzo

Integrated, 1-1/8″ – 1-1/4″

TRASMISSIONE

Cambio

Shimano Ultegra Di2 R8150

Deragliatore

Shimano Ultegra Di2 R8150

Leve cambio

Shimano Ultegra Di2 R8170, wireless, 2×12

Catena

Shimano Ultegra, 12-speed

Guarnitura

Shimano Ultegra R8100, 50/34

Pacco pignoni

Shimano Ultegra R8100, 11-30, 12-speed

Movimento centrale

Shimano BB-RS500, BSA

FRENI

Freni

Shimano Ultegra R8170, 160/140mm MT800 rotors

Leve Freno

Shimano Ultegra Di2 R8170 hydraulic disc

RUOTE

Cerchi

HollowGram R 45, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready

Raggi

Formula Grand Forza, Double Butted, straight-pull

Dimensioni pneumatico

25

Dimensione Ruote

700

Mozzi

(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock

Pneumatici

Vittoria Rubino Pro Bright Black, 700x25c, reflective strip

COMPONENTI

Manubrio

Vision Trimax Carbon Aero

Attacco Manubrio

Cannondale C1 Conceal, Alloy, 31.8, -6°

Impugnatura

Cannondale Bar Tape, 3.5mm

Sella

Prologo Dimension STN NDR, Stainless Steel Rails

Reggisella

Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)

CONNETTIVITÀ

Sensore ruota

Cannondale Wheel Sensor

EXTRA

Extra 1

Shimano EC300 charging connector
